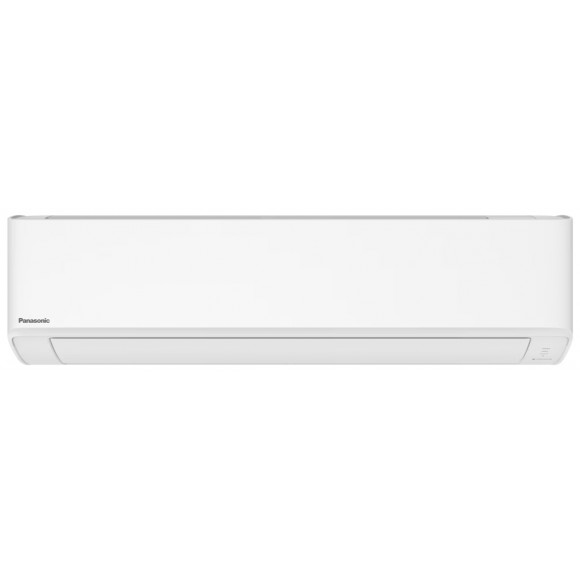

Brand New CS/CU-Z60AKR Panasonic 6/6.5 KW Reverse Cycle Split System Air Conditioner

Model: CS/CU-Z60AKR
Write a review
CS/CU-Z60AKR Panasonic 6/6.5 KW Reverse Cycle Split System Air Conditioner
CS/CU-Z60AKR Panasonic 6/6.5 KW Reverse Cycle Split System Air Conditioner CS/CU-Z60AKR Panasonic 6/6.5 KW Reverse Cycle Split System Air Conditioner CS/CU-Z60AKR Panasonic 6/6.5 KW Reverse Cycle Split System Air Conditioner CS/CU-Z60AKR Panasonic 6/6.5 KW Reverse Cycle Split System Air Conditioner CS/CU-Z60AKR Panasonic 6/6.5 KW Reverse Cycle Split System Air Conditioner CS/CU-Z60AKR Panasonic 6/6.5 KW Reverse Cycle Split System Air Conditioner CS/CU-Z60AKR Panasonic 6/6.5 KW Reverse Cycle Split System Air Conditioner
Free Delivery for Selected Cities Only Learn more
$1,690
Save a further $20 with Coupon code "SAVENOW". Apply at checkout.
Back order
Available to Order
This product is currently on back order. Please allow 7–14 business days for stock to arrive at our warehouse before dispatch. We will notify you if there are any delays.
Manufacturer's Warranty: 5 Years
Delivery to Sydney, Wollongong, Central Coast, Newcastle, and Canberra only

Available Options

Include a Back Up Plan? Learn More The Back Up Plan cover commences at the expiration of the original Manufacturer’s Warranty for the Product. Eg If the Product comes with a "1 Year Manufacture's warranty" , then purchasing a "4 Year Repair Plan" will give you a Total of 5 Years warranty.
Buy now pay, later with:
4 payments of $422.50
4 payments of $422.50
4 payments of $422.50
6 months INTEREST FREE
12 months INTEREST FREE

Estimated delivery time.

Store front and Pick-up Address

Store front and Pick-up Address

201 Woodville road, Villawood NSW 2163

View map   I   Direction

Ph: 1300 361 074

Email : [email protected]

Trading Hours

Monday -Friday : 9:00am to 5:30pm

Saturday - Sunday : 10:00am to 4:00pm

Closed on Public holidays.

Features
• 24-hour nanoe™ X Air Purification
• iAUTO-X function
• Built-in Wi-Fi
• Voice Assistant Compatibility
• Faster and Further Airflow with AEROWINGS
• Built Tough to Last
• ECO Mode with Artificial Intelligence (A.I.) Control
• Corrosion-Resistant Blue Fin Condenser
• Water Resistant PCB
• Corrosion-Resistant Outdoor Coating
• Better Heat Transfer with Copper Tube Condenser
• Wireless Remote Controller
• Optional Wired Remote Controller




Specifications

• Indoor Unit
 CS-Z60AKRW
• Outdoor Unit
 CU-Z60AKR
• Cooling Capacity (min-max) (kW)
 6.00 (1.25-6.90) kW
• Heating Capacity (min-max) (kW)
 6.50 (0.98-8.20) kW
• Cooling Capacity (min-max) (Btu/h)
 20,500 (4,260-23,500) Btu/h
• Heating Capacity (min-max) (Btu/h)
 22,200 (3,340-28,000) Btu/h
• Cooling Indoor Air Flow (L/s)
 328 L/s
• Heating Indoor Air Flow (L/s)
 339 L/s
• Dehumid (L/h)
 3.30 L/h
• Cooling Running Current (A)
 7.90 A
• Heating Running Current (A)
 8.00 A
• Max Current (A)
 11.60 A
• Cooling Power Input (min-max) (kW)
 1.85 (0.35-2.20) kW
• Heating Power Input (min-max) (kW)
 1.89 (0.26-2.64) kW
• Cooling AEER/EER
 3.23 W/W / 3.24 W/W
• Heating ACOP/COP
 3.42 W/W / 3.44 W/W
• Star Rating - Cooling (Hot Climate)
 3.5 TCSPF
• Star Rating - Cooling (Average Climate)
 3.5 TCSPF
• Star Rating - Cooling (Cold Climate)
 3.5 TCSPF
• Star Rating - Heating (Hot Climate)
 3.5 HSPF
• Star Rating - Heating (Average Climate)
 3.0 HSPF
• Star Rating - Heating (Cold Climate)
 2.0 HSPF
• Indoor Unit Sound Pressure Noise Level (Cooling) (H / L / Q-Lo)
 47/36/33 dB(A) *Sound pressure level specification is measured according to JIS C9612.
• Indoor Unit Sound Pressure Noise Level (Heating) (H / L / Q-Lo)
 48/36/33 dB(A) *Sound pressure level specification is measured according to JIS C9612.
• Indoor Unit Sound Power Noise Level (Cooling) (H / L / Q-Lo)
 63/52/49 dB(A)
• Indoor Unit Sound Power Noise Level (Heating) (H / L / Q-Lo)
 64/52/49 dB(A)
• Outdoor Unit Sound Pressure Noise Level (Cooling) (H / Q-Lo)
 49/44 dB(A) *Sound pressure level specification is measured according to JIS C9612.
• Outdoor Unit Sound Pressure Noise Level (Heating) (H / Q-Lo)
 51/46 dB(A) *Sound pressure level specification is measured according to JIS C9612.
• Outdoor Unit Sound Power Noise Level (Cooling) (H / Q-Lo)
 64/59 dB(A)
• Outdoor Unit Sound Power Noise Level (Heating) (H / Q-Lo)
 66/61 dB(A)
• Refrigerant Type
 R32
• Refrigerant Pipe Diameter (Liquid Side)
 ø 6.35 mm (1/4 inch)
• Refrigerant Pipe Diameter (Gas Side)
 ø 12.70 mm (1/2 inch)
• Pipe Extension Length (min-max)
 3 m ~ 20 m
• Maximum Elevation Length
 15 m
• Pipe Length for Additional Refrigerant Gas
 10 m
• Additional Gas Amount
 15 g/m
• Power Supply
 Outdoor
• Outdoor Unit Operating Range (Cooling)
 -10°C ~ +46°C
• Outdoor Unit Operating Range (Heating)
 -15°C ~ +24°C
• iAUTO-X
 Yes
• ECO Mode with A.I.
 Yes
• Inverter Control
 Yes
• Sleep Mode
 Yes
• Quiet Mode
 Yes
• Fan Mode
 Yes
• Soft Dry Operation Mode
 Yes
• Hot Start Control
 Yes
• Auto Changeover (Inverter)
 Yes
• Personal Airflow Creation
 No
• Manual Horizontal Airflow Direction Control
 Yes
• Airflow Direction Control (Up & Down)
 Yes
• nanoe™ X
 Yes (Generator Mark 1)
• Odour Removing Function
 Yes
• Removable Washable Panel
 Yes
• 24-Hour Dual ON & OFF Real Setting Timer
 Yes
• Demand Response Enabling Device (DRED)
 Yes
• LCD Wireless Remote Control
 Yes
• Wi-Fi
 Yes (Built-in)
• Wired Remote Control
 Yes (Optional)
• Random Auto Restart
 Yes (32 Restart Patterns)
• Blue Fin Condenser
 Yes
• Long Piping (max.)
 20 m
• Top Panel Maintenance Access
 Yes
• Self-Diagnostic Function
 Yes
• Note
 Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.
